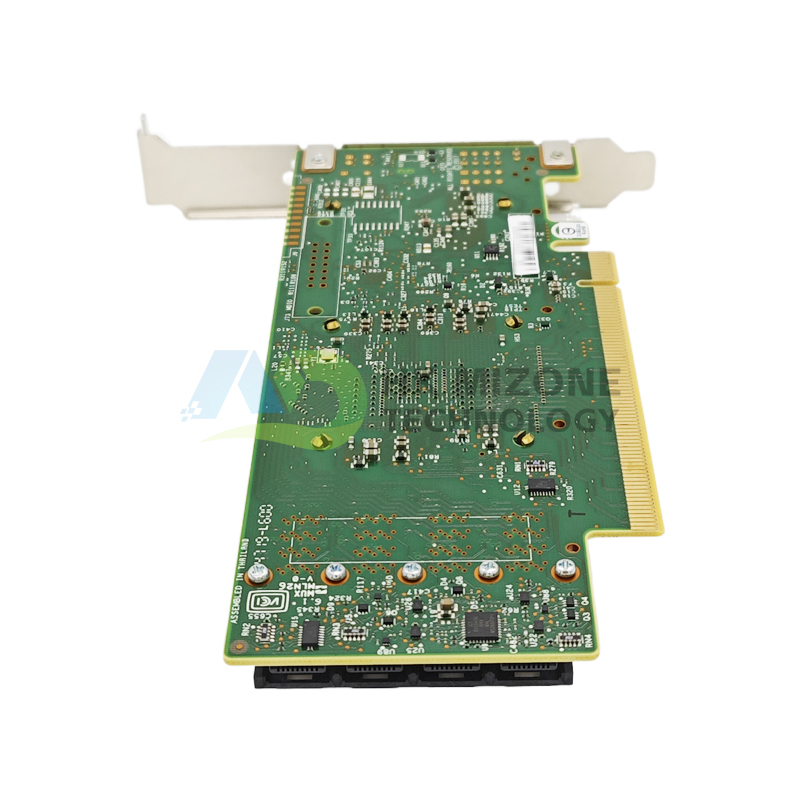

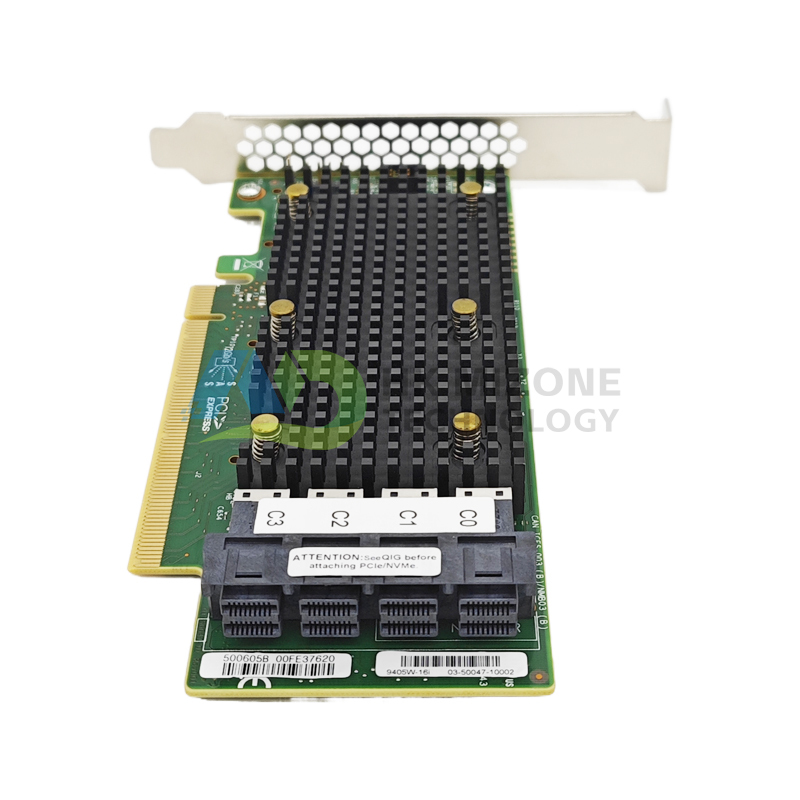

The high-port 9405W-16i Tri-Mode, PCIe Gen 3.1 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9405W-16i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 24 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe® 3.1 connectivity
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box
HBA 9405W-16i
05-50047-00

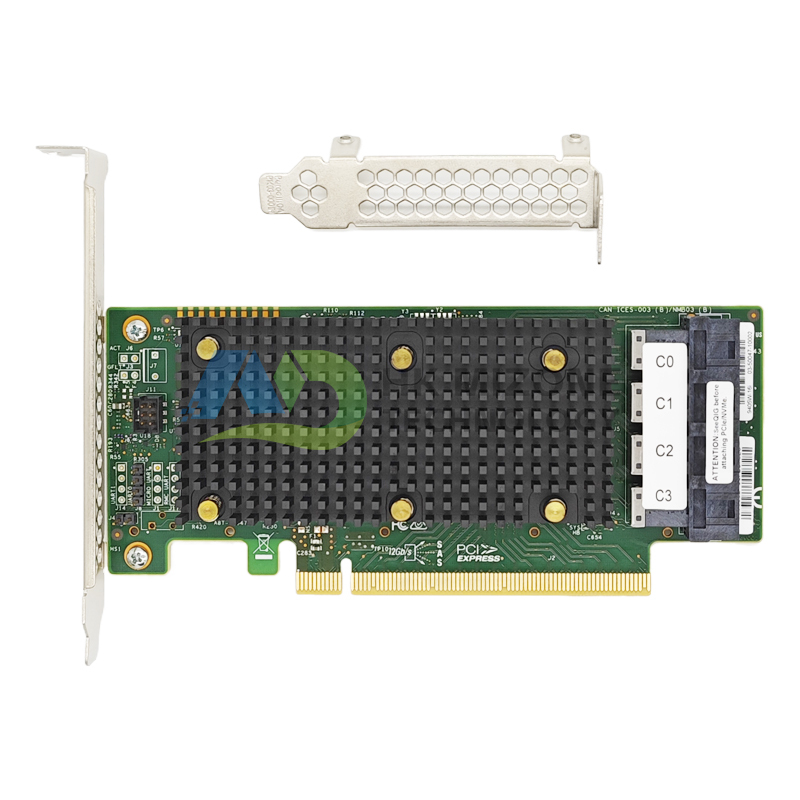

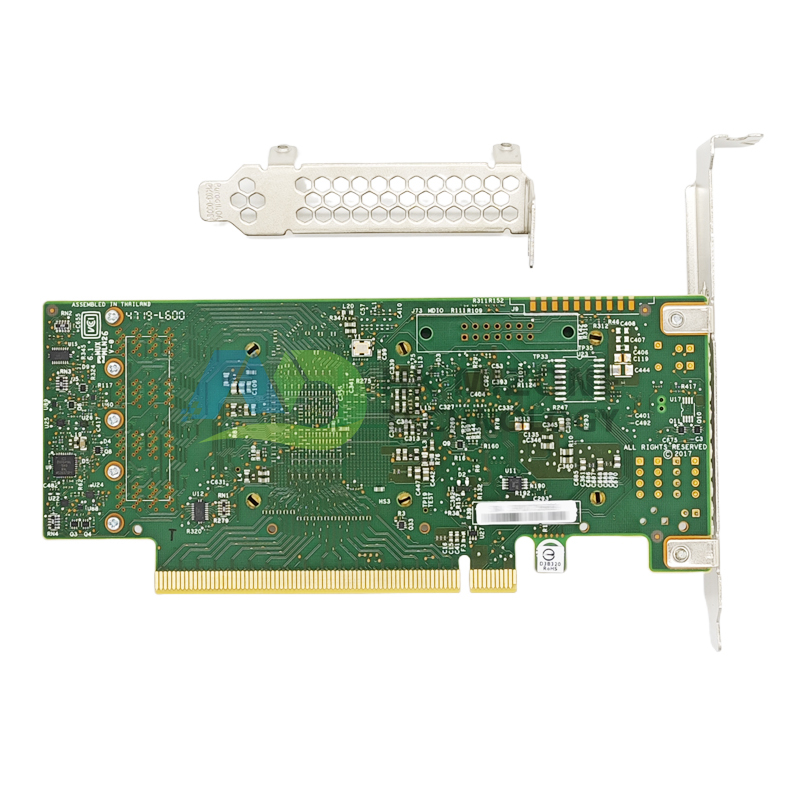

9405W-16i HBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024, NVMe: 24
Generation
12 Gb/s
Host Bus Type
x16 lane PCI Express 3.1
Internal Connectors
4 x4 SFF-8643 (Int HD)
Internal Ports
16
I/O Controller
SAS3616W
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 4,500,000 hours at 40° C
Operating Humidity
20% to 80% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
6.127” x 2.712” (155.65 mm x 68.90 mm)
Regulatory Certifications
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
Typical Power
14.0W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
