The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box

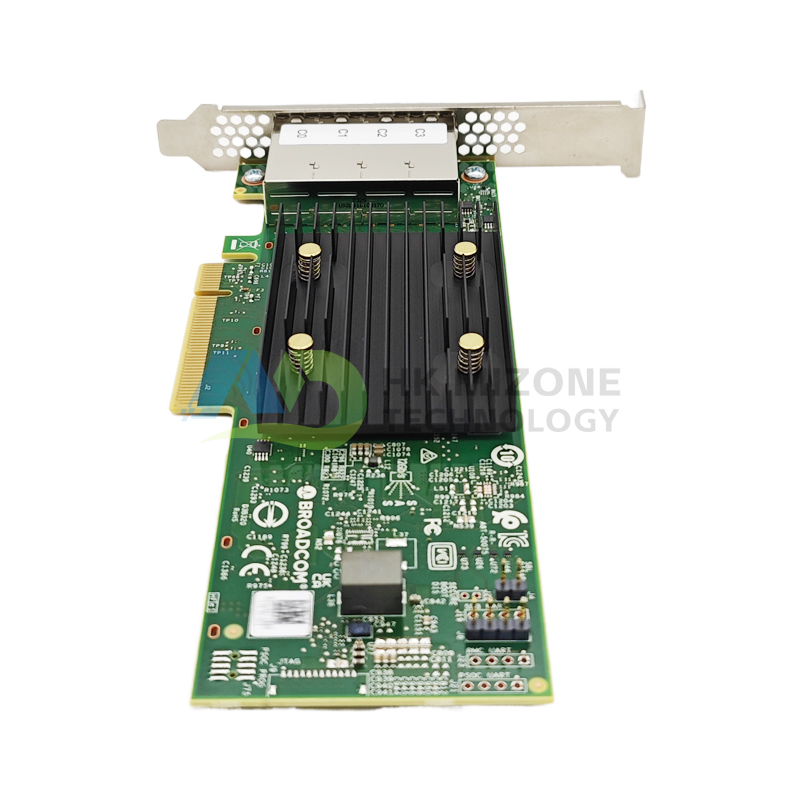

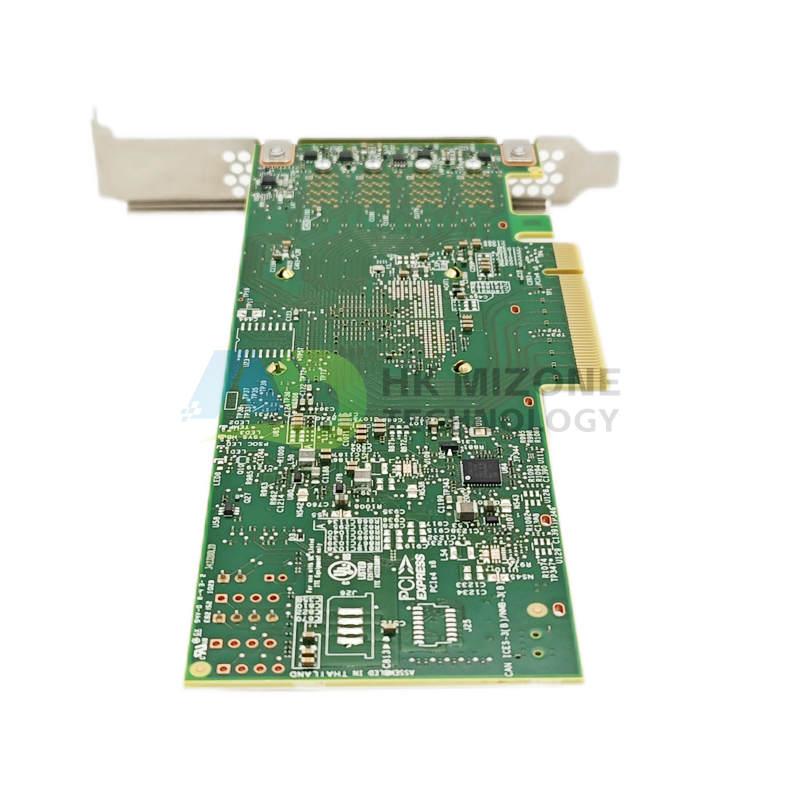

HBA 9500-16e
05-50075-00

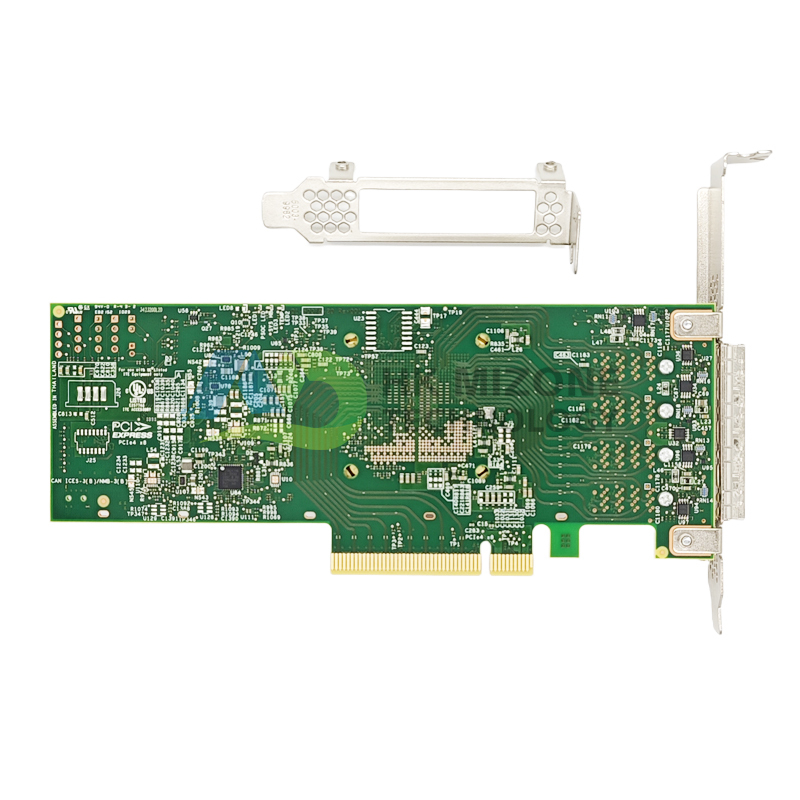

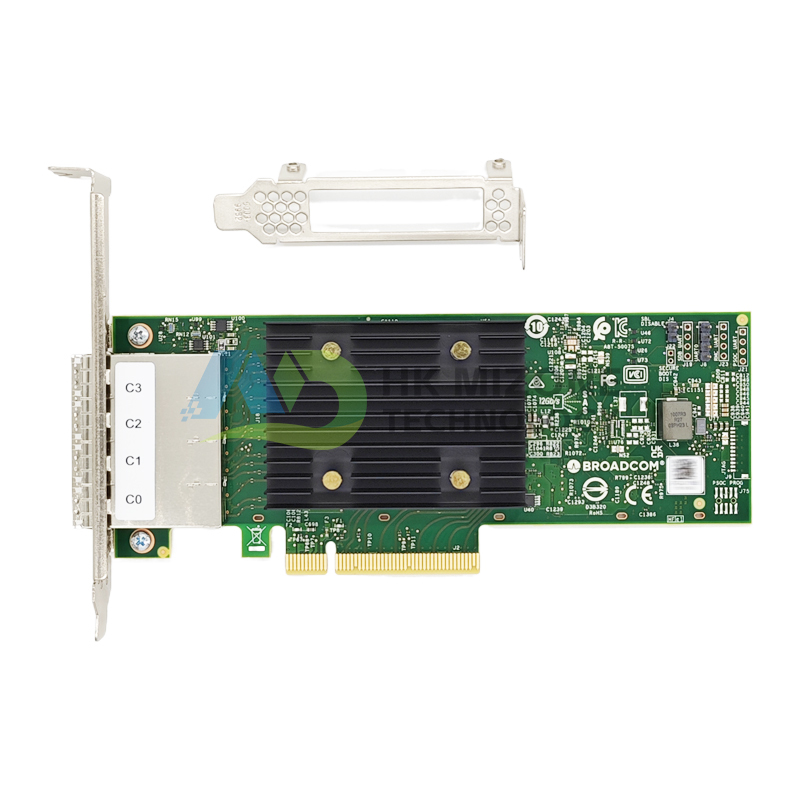

9500-16e HBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024, NVMe: 32
External Connectors
4 x4 SFF-8644 (ext HD)
External Ports
16
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 4.0
I/O Controller
SAS3816
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 5,000,000 hours at 40° C
Operating Humidity
20% to 80% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, CentOS Linux, Citrix XenServer, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
167.65 (+/-0.13) mm x 68.77 (+/-0.13) mm
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power
8.74W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
