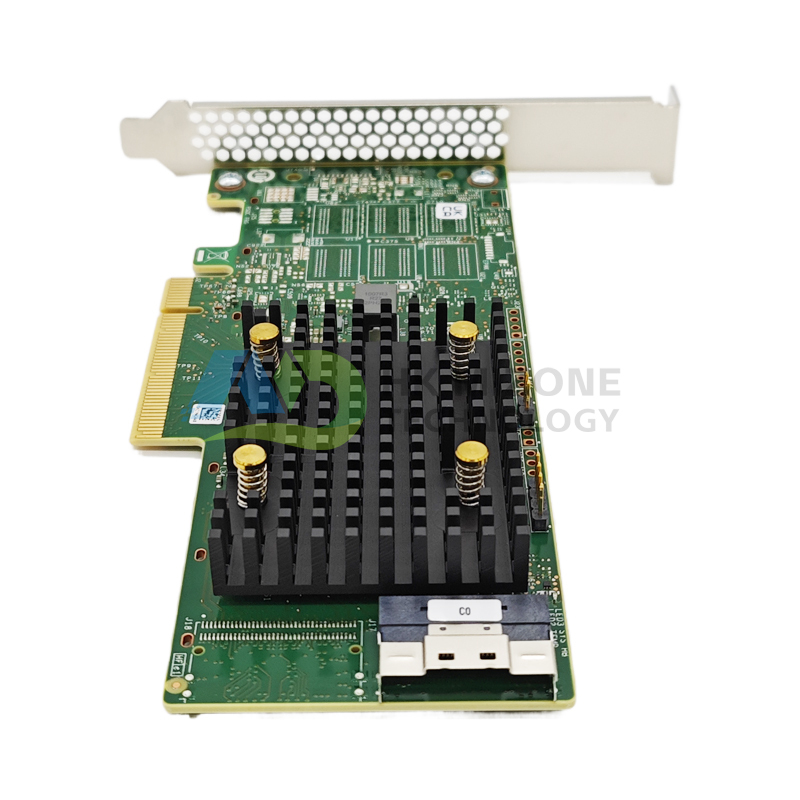

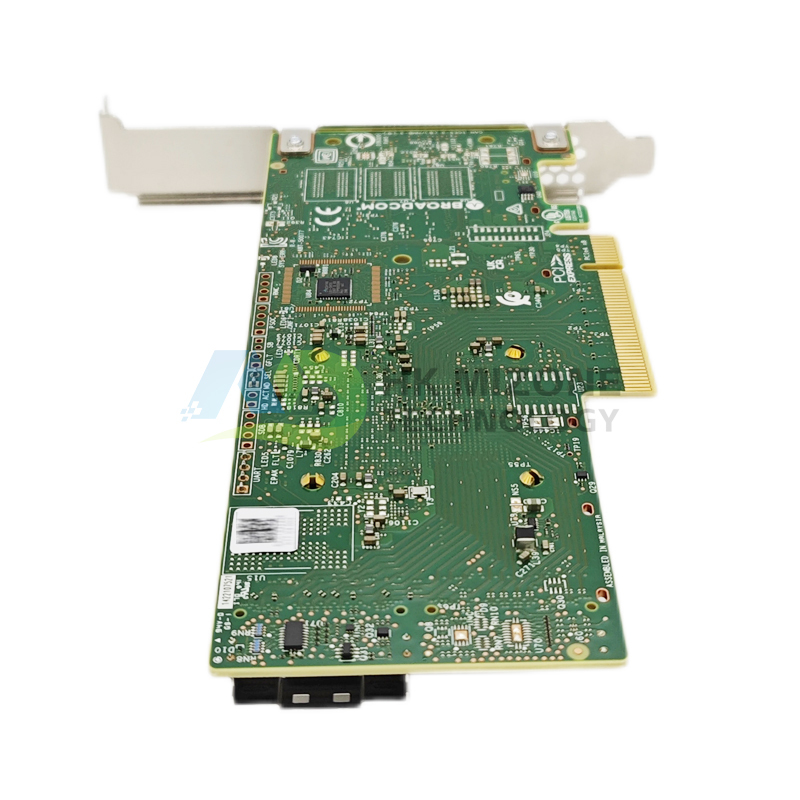

The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe® 4.0 connectivity
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box
HBA 9500-8i
05-50134-01 05-50077-03

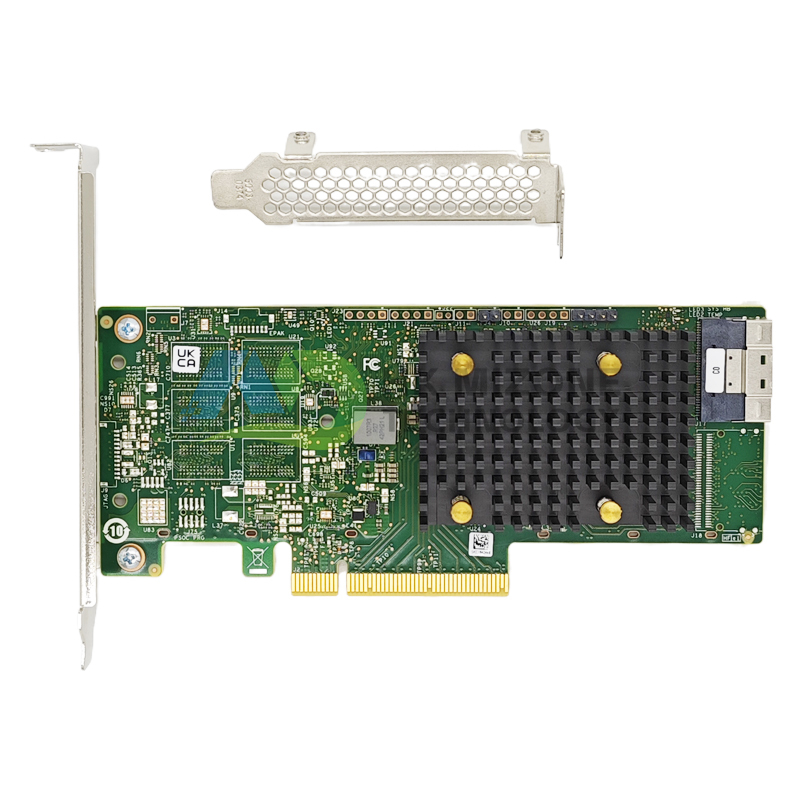

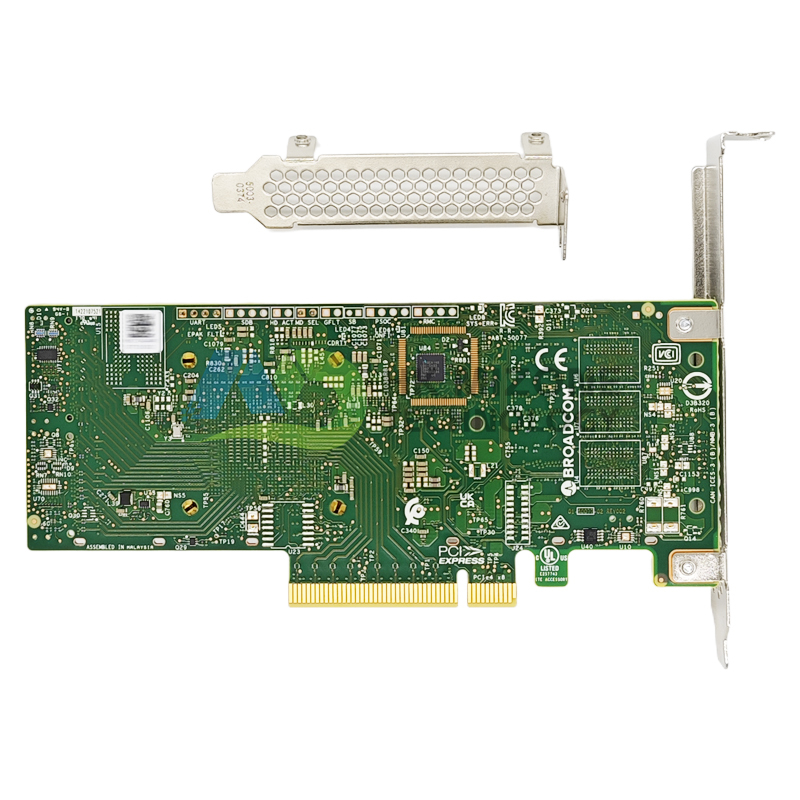

9500-8i HBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024, NVMe: 32
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 4.0
Internal Connectors
1 x8 SFF-8654 (SlimSAS)
Internal Ports
8
I/O Controller
SAS3808
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 5,000,000 hours at 40° C
Operating Humidity
20% to 80% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Citrix XenServer, CentOS Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power
5.96W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
