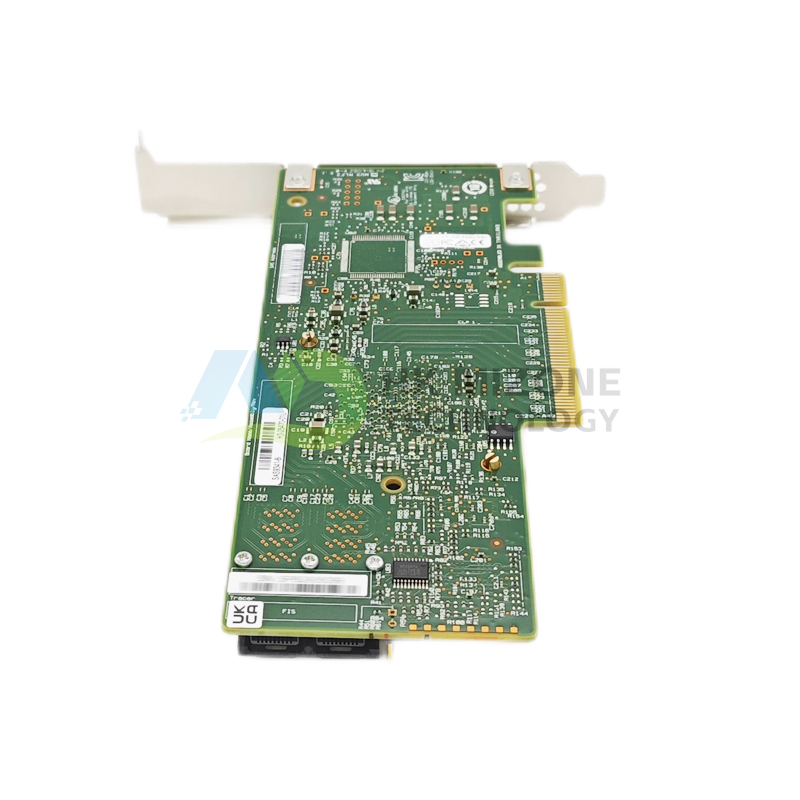

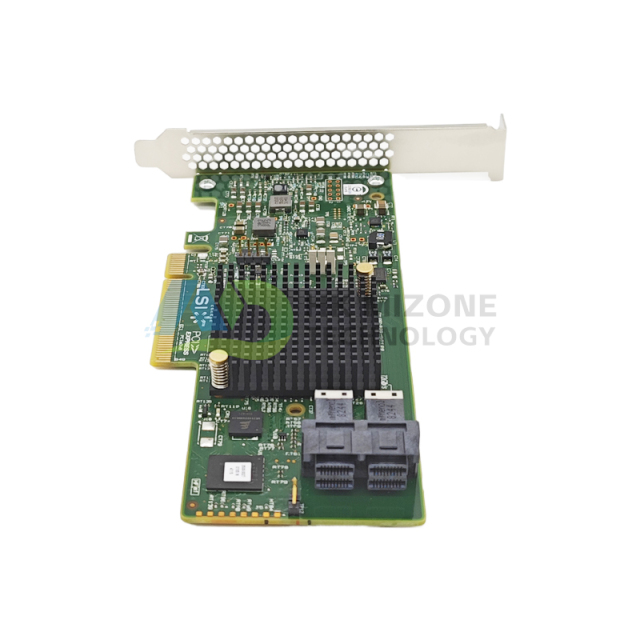

The MegaRAID 9341 series is the industry’s first PCIe Gen 3.0 RAID adapter family, offering PCIe Gen 3.0 host and storage interfaces. The MegaRAID 9341-8i adapter, based on the SAS3008 PCIe 3.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.
Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9341-8i Storage Adapter is a PCIe Gen 3.0 12Gb/s SAS/SATA controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.
Key Features Include:
Connect up to 64 SAS/SATA devices
Balance protection and performance for critical applications with RAID 0, 00, 1, 10, 5, 50
Support critical, high-bandwidth applications with PCIe 3.0 connectivity
Product
Manufacturer Part #
What's in the Box

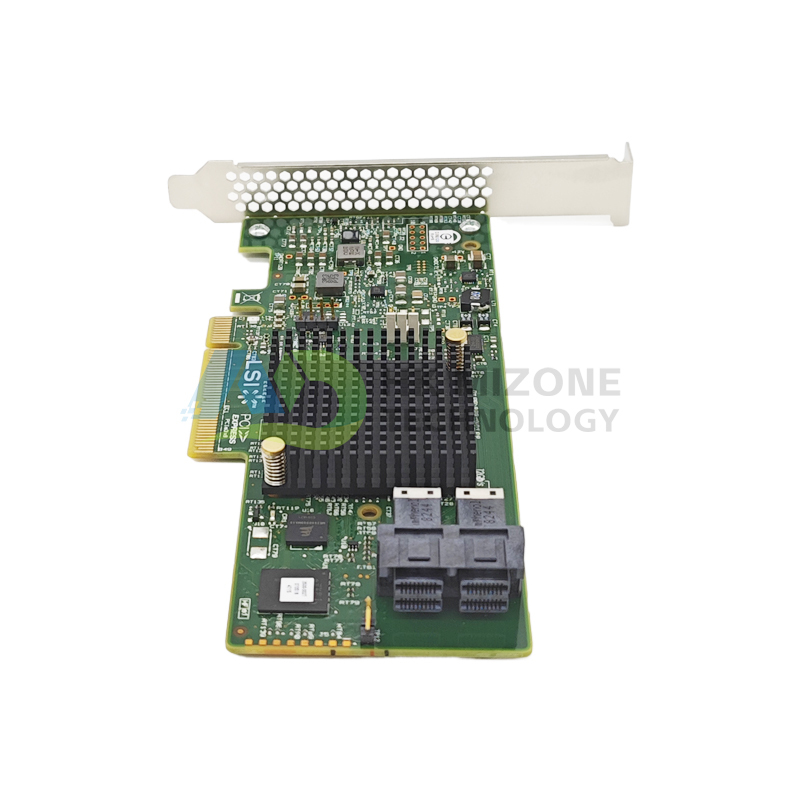

MegaRAID 9341-8i
05-26106-00 / LSI00407

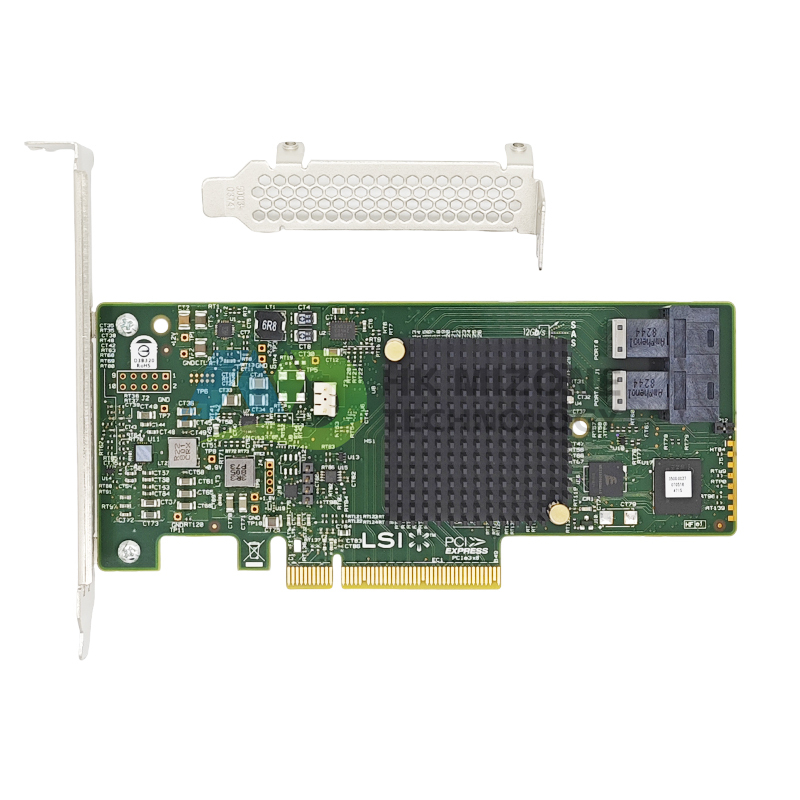

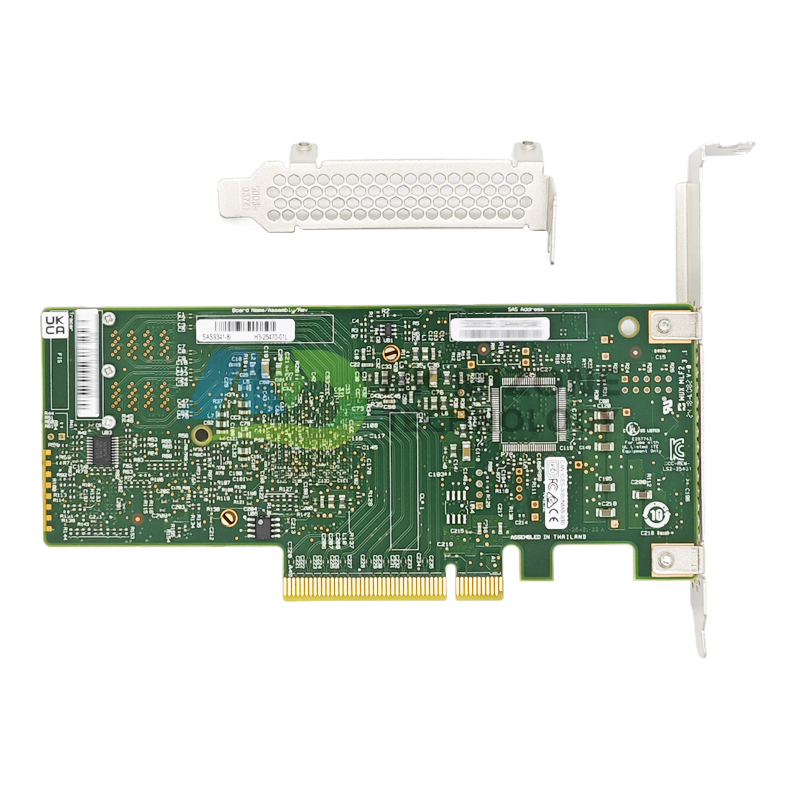

MegaRAID 9341-8i, FH (attached) and LP brack
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Data Transfer Rates
12Gb/s SATA+SAS
Devices Supported
SAS/SATA: 64
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 3.0
I/O Processor / SAS Controller
SAS3008
Internal Connectors
2 x4 SFF-8643 (Int HD)
Internal Ports
8
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
>2,800,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 70°C
OS
Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003, Linux®, Solaris™ (x86),FreeBSD®,VMware® and more
Physical Dimensions
2.6” x 6.0”
RAID Levels
0, 00, 1, 10, 5, 50
Regulatory Certifications
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
Typical Power
13.0W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
