The MegaRAID 9400 series is the industry’s first PCIe Gen 3.1 RAID adapter family, offering PCIe Gen 3.1 host and storage interfaces. The MegaRAID 9440-8i adapter, based on the SAS3408 PCIe 3.1 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.
Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9440-8i Tri-Mode Storage Adapter is a PCIe Gen 3.1 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.
The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enablethe operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
Key Features Include:
Connect up to 63 SAS/SATA devices and 2 NVMe devices
Balance protection and performance for critical applications with RAID 0, 00, 1, 10, 5, 50
Support critical, high-bandwidth applications with PCIe 3.1 connectivity
Product
Manufacturer Part #
What's in the Box

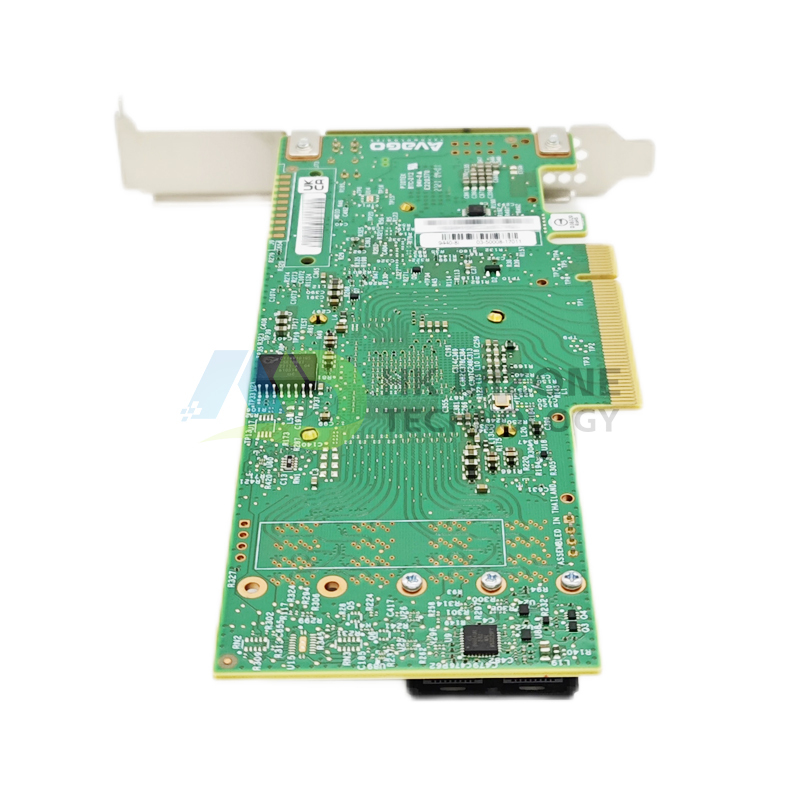

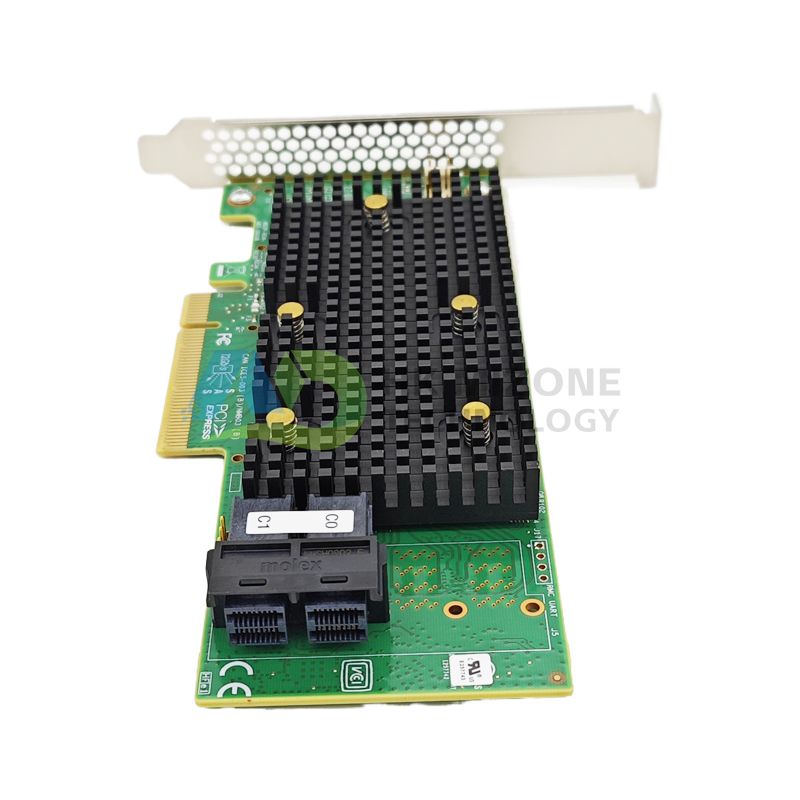

MegaRAID 9440-8i
05-50008-02

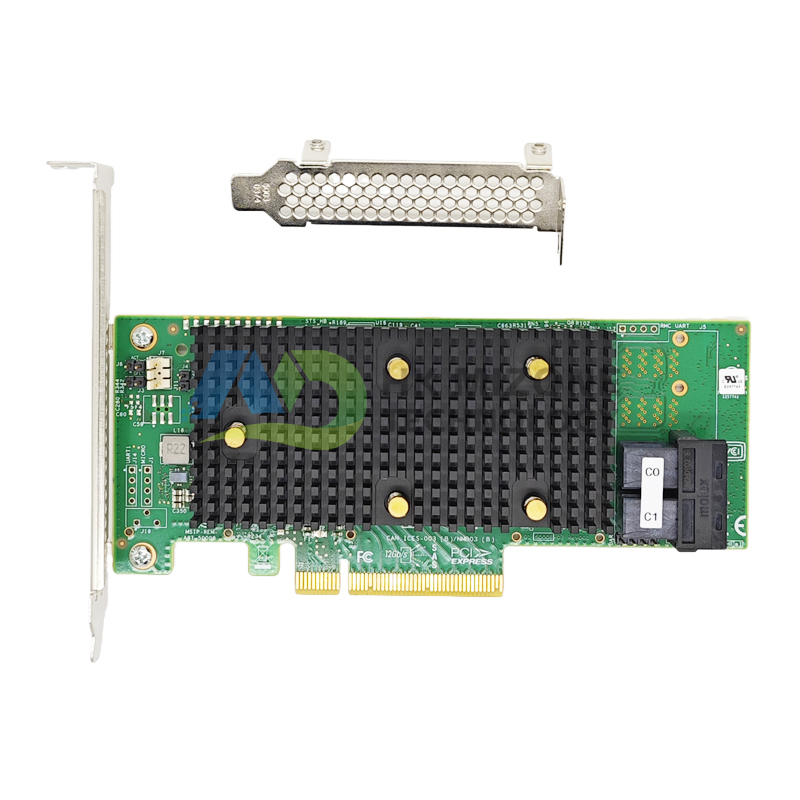

MegaRAID 9440-8i, FH (attached) and LP brack
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Data Transfer Rates
12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported
SAS/SATA: 63, NVMe: 2
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 3.1
I/O Processor / SAS Controller
SAS3408
Internal Connectors
2 x4 SFF-8643 (Int HD)
Internal Ports
8
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
>3,000,000 hours at 40° C
Operating Humidity
5% to 95% Non-condensing
Operating Temperature°C
Storage: –45°C to 105°C
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD.
Physical Dimensions
6.127 in. × 2.712 in. (155.65 mm × 68.90 mm)
RAID Levels
0, 00, 1, 10, 5, 50
Regulatory Certifications
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
Typical Power
10.05W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
