The SAS 9300-8i PCIe Gen 3.0 HBA with 8 internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance over previous generations, the 9300-8i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 3.0 connectivity
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box

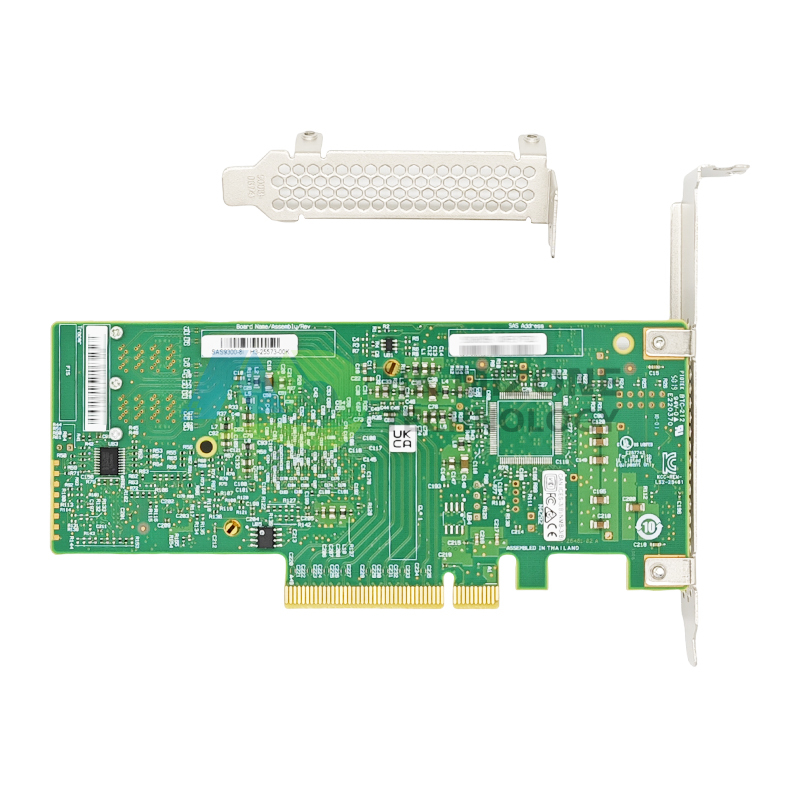

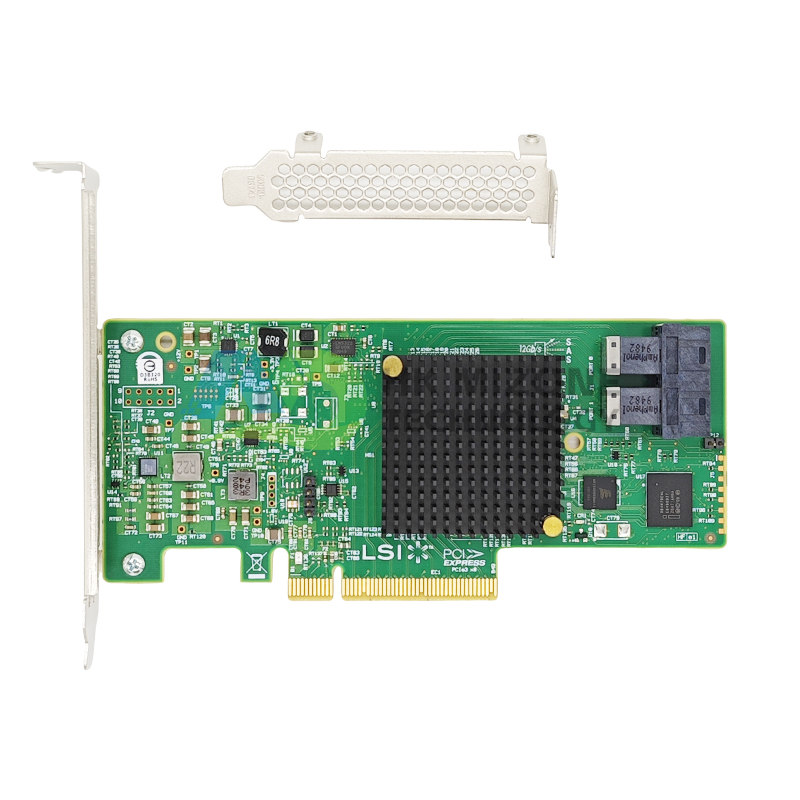

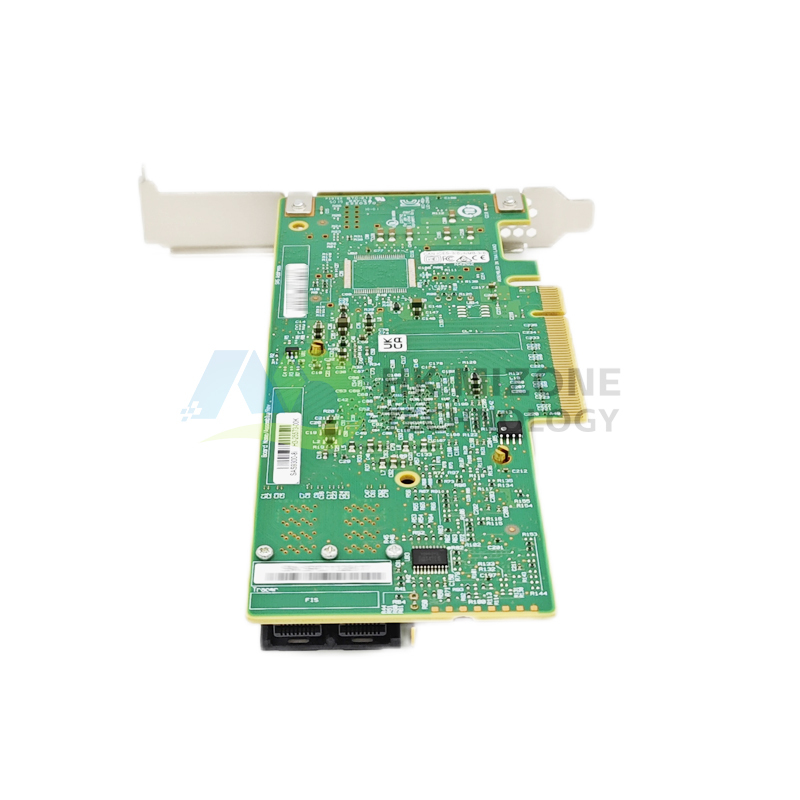

SAS 9300-8i
H5-25573-00
9300-8i HBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024
Internal Connectors

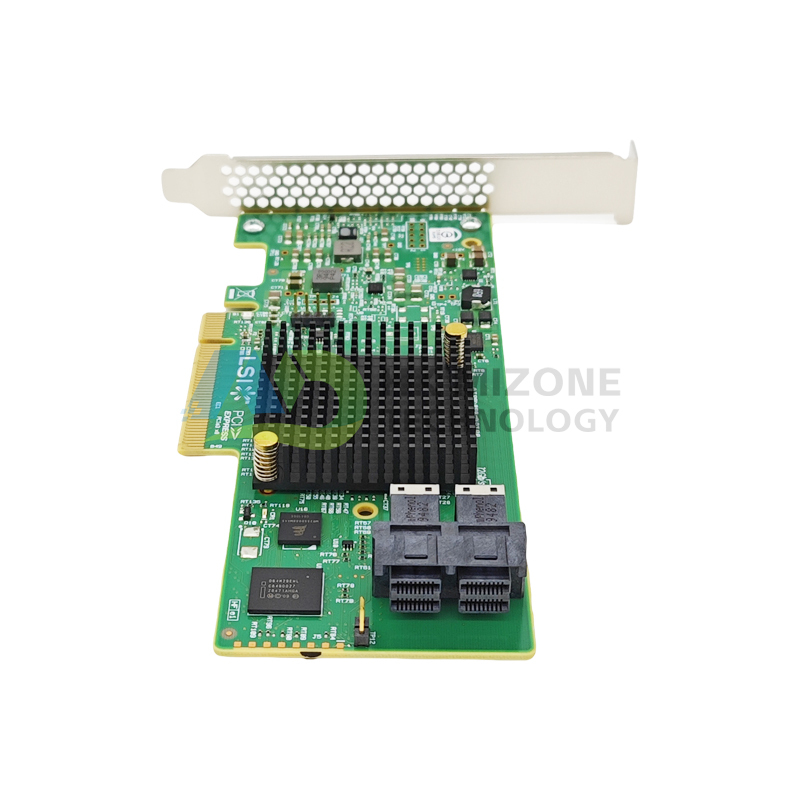

2 x4 SFF-8643 (Int HD)
Internal Ports
8
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 3.0
I/O Controller
SAS3008
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 2,800,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD.
Physical Dimensions
2.6” x 6.0”
Regulatory Certifications
EMC: Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404);Safety: EN60950; RoHS; WEEE
Typical Power
13.0W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
