The 9305-16i PCIe Gen 3.0 HBA with 16 internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance over previous generations, the 9305-16i adapter delivers the performance and scalability needed by critical applications.

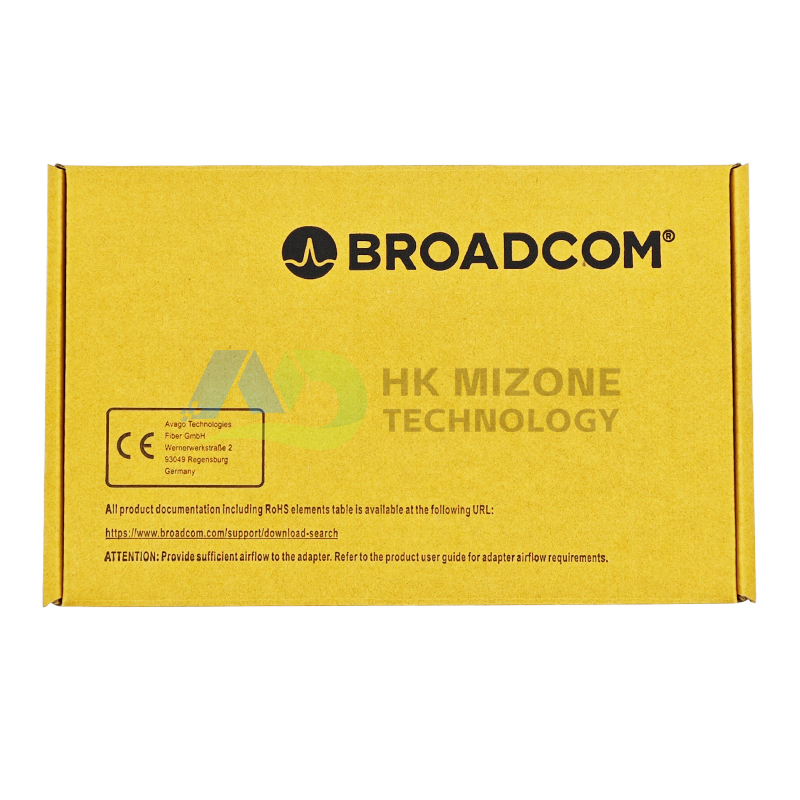

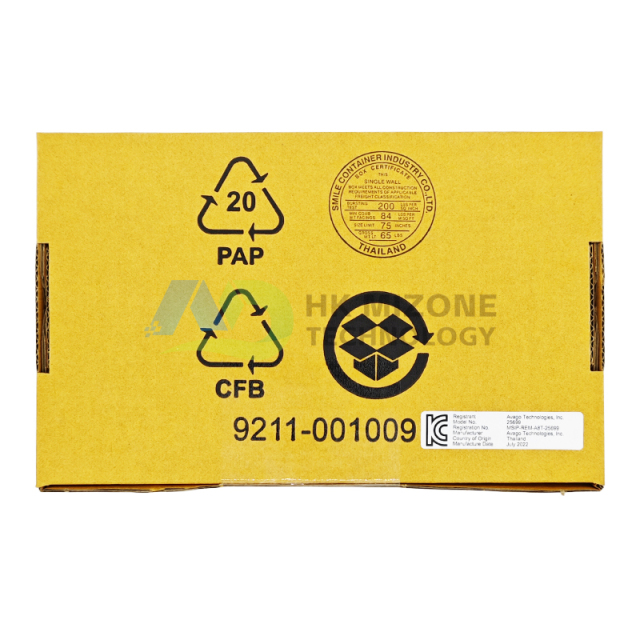

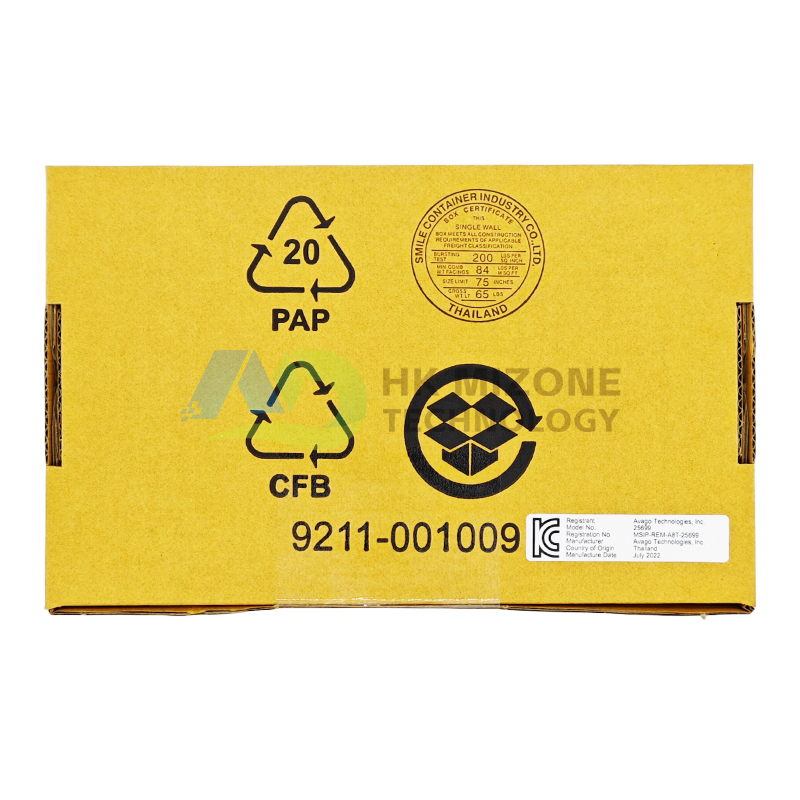

| Product | Manufacturer Part # | What's in the Box |
|---|---|---|
| SAS 9305-16i | 05-25703-00 | 9305-16i HBA, Low Profile Bracket, FH (attached) |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Brackets | Full height and low profile |
| Devices Supported | SAS/SATA: 1024 |
| Internal Connectors | 4 x4 SFF-8643 (Int HD) |
| Internal Ports | 16 |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 3.0 |
| I/O Controller | SAS3224 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | > 3,500,000 hours at 40° C |
| Operating Humidity | 5% to 90% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. |
| Physical Dimensions | 6.127” x 2.712” (155.65 mm x 68.90 mm) |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE |
| Typical Power | 16.2W |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| What's in the box | 9305-16i HBA, Low Profile Bracket, FH (attached) |
