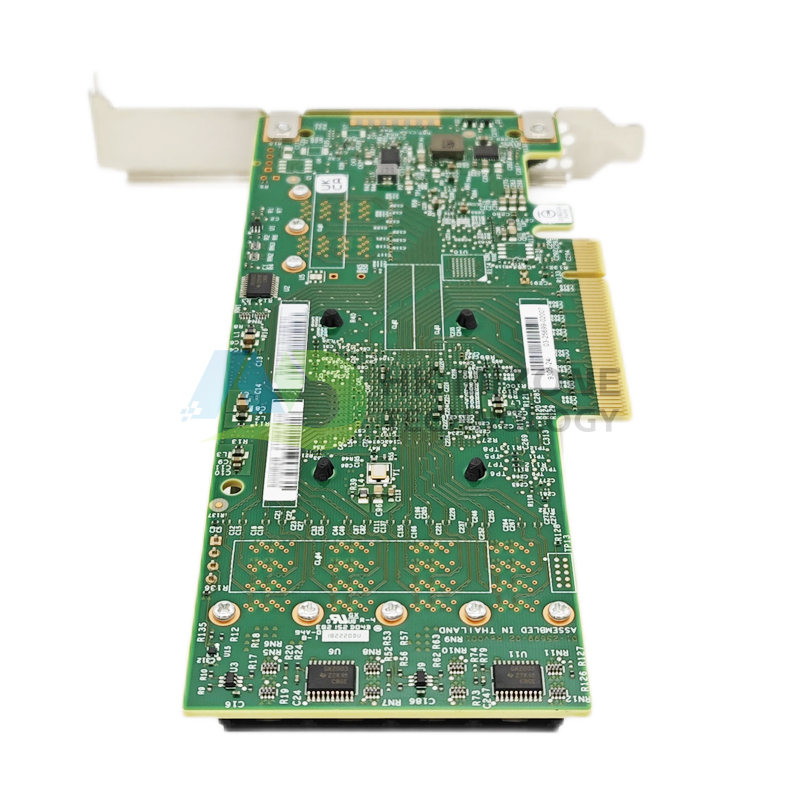

The 9305-24i PCIe Gen 3.0 HBA with 24 internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance over previous generations, the 9305-24i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 3.0 connectivity
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box
SAS 9305-24i
05-25699-00

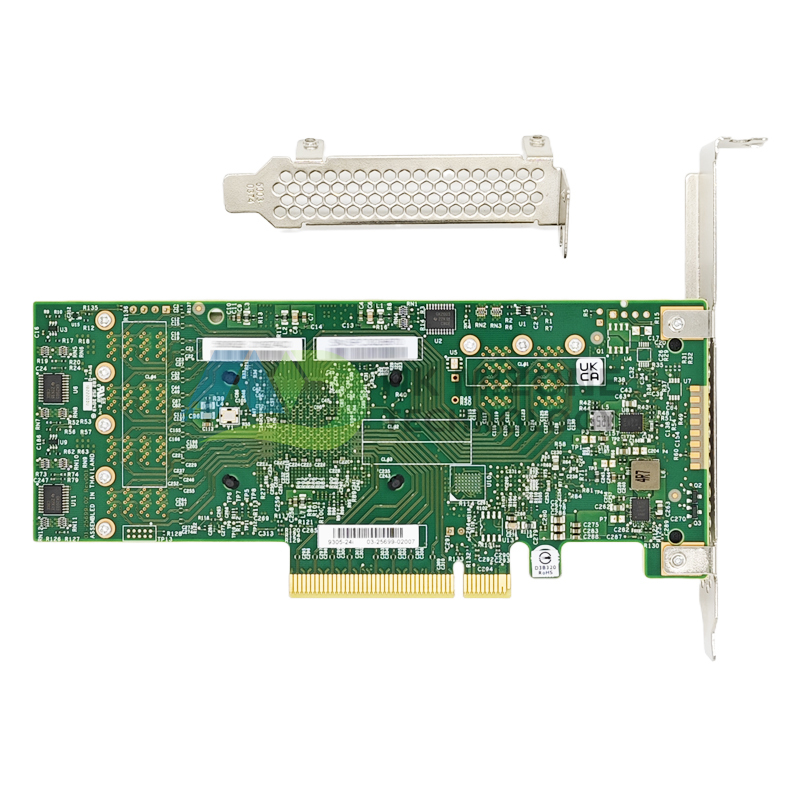

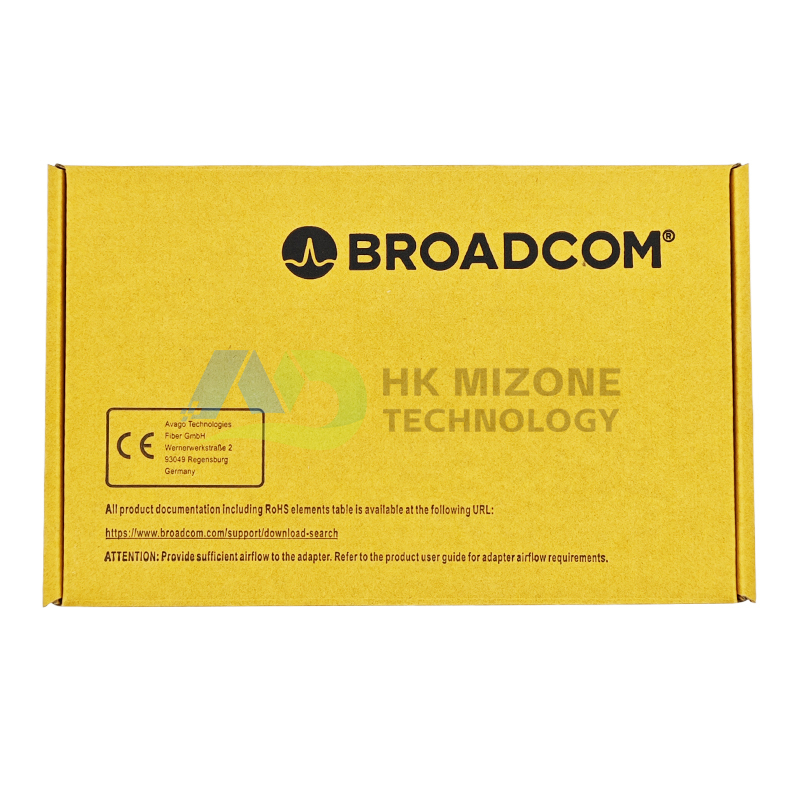

9305-24i HBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024
Internal Connectors
6 x4 SFF-8643 (MiniSAS HD)
Internal Ports
24
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 3.0
I/O Controller
SAS3224
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 3,500,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD.
Physical Dimensions
6.127” x 2.712” (155.65 mm x 68.90 mm)
Regulatory Certifications
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
Typical Power
16.2W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
